Features
⚫ Pure hardware FPGA architecture: no CPU, no core, no risk of poisoning and crash, the system runs
stably; supports 365×24 hours of continuous operation.

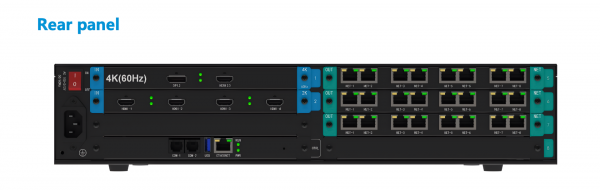

⚫ The stand-alone machine has 24 network port outputs, and a single network port can carry 650,000 pixels;
the whole machine can carry a maximum of 15.6 million pixels, with a maximum width of 40,960 points
and a maximum height of 40,960 points.
⚫ Multi-window display, the whole machine can display up to 16 windows at the same time, the pictures can
be displayed across the output network ports, support any superposition, and the size can be set at any time.
⚫ Equipped with 4K@60Hz module, it supports DP1.2 input and HDMI2.0 input, and 2 channels of 4K can
be displayed on the screen at the same time; the maximum resolution supports 4096×2160@60Hz or
7680×1200@60Hz.
⚫ Within the loading range of the device, the network ports can be arranged arbitrarily.
⚫ No need install software, it is controlled via the Web, and is not restricted by operating systems and
operating platforms.
⚫ The LCD embedded in the front panel of the device is a 4.3-inch multi-touch capacitive LCD screen,
which supports functions such as setting the parameters of the device network IP and central control
serial port, viewing the device firmware version, calling scenes, and viewing the device hardware status.
⚫ Different preset parameters can be saved as scenes, and multi-screen scenes and single-screen scenes can
be called with one click and switched easily.
⚫ Supports up to 8 groups of screen management, and the output resolution of each group of screens can be
set separately, easily completing display control of special-shaped screens and complex scenes.
⚫ It supports overlaying text on layers, and subtitles can be displayed statically or dynamically scrolling.
Users can set the background color, scrolling style, etc. of the subtitles.
⚫ Supports pre-editing management, and layer editing does not affect the current device output.
⚫ No additional monitoring board is required, and the web terminal supports input real-time preview.
⚫ Supports input source polling and regular switching of multiple input sources.
⚫ Supports scene loop to meet unsupervised application scenarios.
⚫ It supports the input source station logo, embeds characters in each input signal, and identifies the input
signal. The screen displays the input signal and displays the embedded characters at the same time.
⚫ Supports seamless switching. When switching layers' signals or calling plans, there will be no black
screen, no flickering, and no lag in the entire process.
⚫ Supports hardware monitoring, including real-time monitoring of the temperature and voltage of each
hardware module, firmware version, operating status, fan speed, etc.
⚫ Supports remote upgrade, program upgrade can be performed remotely, and system maintenance is
simple.
